Article number: 19 114 06 99

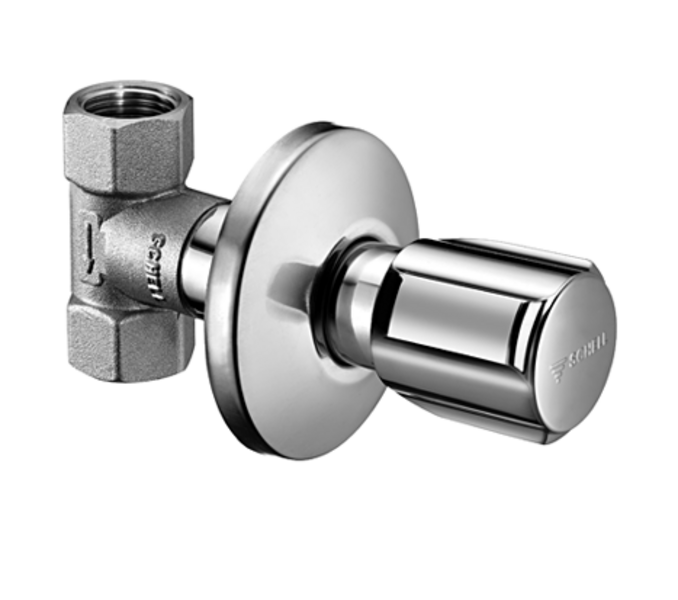

Concealed valve DN 15

With shut-off and regulating function.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Concealed spindle valve
    • COMFORT handle
    • Non-rising head part
    • Push rod
    • Maintenance-free spindle seal
  • Protective cap
  • Push rosette Ø 65 mm

Delivery data

  • Weight: 0,35 kg/Piece
  • Packing unit: 20

Technical data

  • Max. Operating pressure: 10 bar
  • Max. operating temperature: 85 °C
  • Material: Brass, conform to German drinking water regulations
  • Surface: Chrome

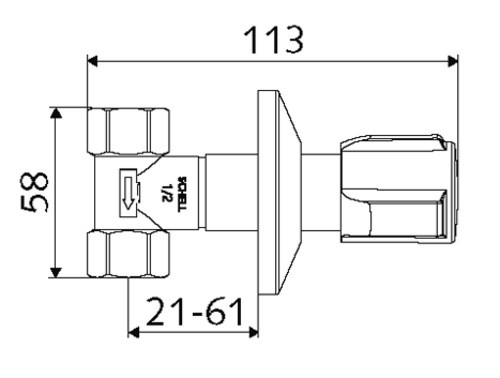

  • Installation depth: 0 - 40 mm
  • Connection: DN 15 G 1/2 IG
  • Outlet: DN 15 G 1/2 IG
  • Certificates: P-IX 28893/II
  • Noise class: II
Recommended associated articles
Extension set for concealed valves
Article no: 22 240 00 99
Hint
  • Temperature-resistant, conform to EN 1213.
  • Also suitable for heating installations.
