Article number: 00 243 06 99

Electronic kitchen tap GRANDIS E

New SSC SWS
HD-M - high-pressure mixed water
Infrared sensor-controlled. Additional single-lever operation. Mains operation. Suitable for networking with the SCHELL SWS water management system. Configurable via SCHELL Single Control SSC. Stagnation flushing in the mixing ratio of the touch-free actuation, independent of the single-lever position.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Infrared sensor kitchen tap
    • Single-lever mixer
    • Infrared sensor electronics, programmable
    • 6 V solenoid valve with pre-filter
    • Ceramic cartridge with hot water restrictor
    • Pivoting outlet with configurable pivot range
    • Flow regulator
    • 2 flexible connection hoses, G 3/8 IG x 450 mm, with backflow preventer (DIN EN 1717: EB-type) and pre-filter
  • Transformer plug 9 VDC, 100-240 VAC, 50-60 Hz

Delivery data

  • Weight: 3,73 kg/Piece
  • Packing unit: 1

Technical data

  • Tap hole diameter: 35 - 37 mm
  • Setting options via SWS SSC
    • Programming via short range reflex (off/on)
    • Max. flow time (1-600 s)
    • Stagnation flush (off/5-600 s, every 1-240 h after last flush/every 1-240 h)
    • Energy saving mode (off/1-254 h after last flush)
  • Setting options via short range reflex
    • Max. flow time (4-240 s, 12 program stages)
    • Stagnation flush (off/after last flush/fixed interval)
  • Flow: max. 10 l/min (manual activation)
  • Flow: max. 8.5 l/min (electronic activation)
  • Flow pressure: 1.0 - 5.0 bar
  • Max. Resting pressure: 8 bar
  • Max. operating temperature: 70 °C (80 °C for thermal disinfection)
  • Material: Housing Brass, conform to German drinking water regulations
  • Surface: Chrome
  • Connection: 2x G 3/8 IG
  • Certificates: P-IX 29861/IO, WRAS
  • Noise class: I
  • Flow class: O
Recommended associated articles
SSC Bluetooth® module
Article no: 00 916 00 99
Extension cable
Article no: 51 010 00 99
or
Extension cable
Article no: 51 023 00 99
Angle valve with regulating function COMFORT with filter
Article no: 05 430 06 99
Downloads

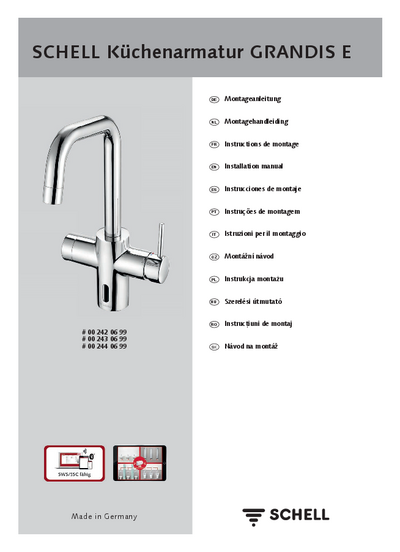

Installation instructions

Küchenarmatur GRANDIS E

Brochure / Flyer

GRANDIS E kitchen faucet. Contact-free hygiene – also in the kitchen.
