Article number: 03 074 00 99

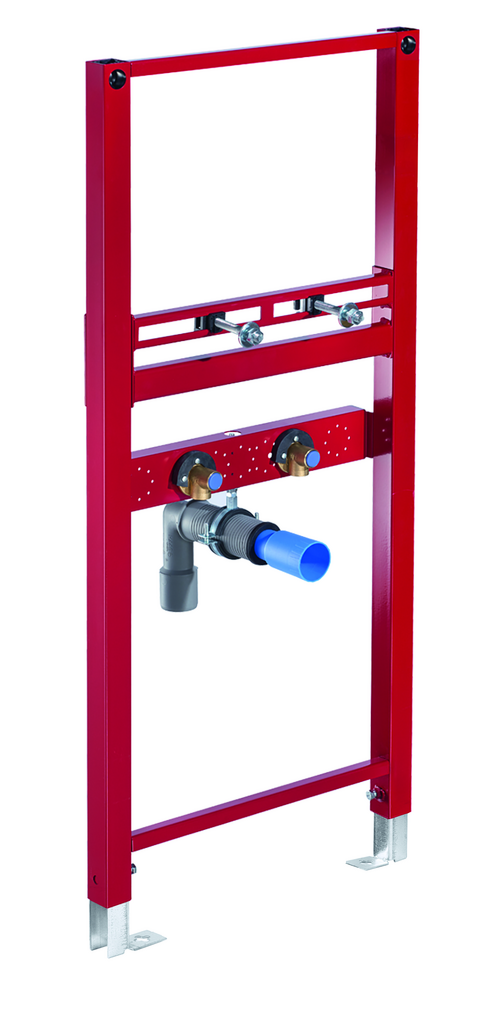

Wash basin module MONTUS

Wash basin mounting module, height 115 cm. For stud wall or pre-wall mounting or exposed installation. Self-supporting, powder-coated steel profiled frame with height-adjustable feet and cross bars.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Wash basin mounting module
    • Cross bar for wash basin attachment 40-375 mm, height-adjustable
    • Cross bar with noise-insulated angle valve connections 80/160/320 mm, siphon elbow, siphon rubber and construction plug, height-adjustable
    • Galvanised, height-adjustable mounting feet 0 - 20 cm with slip resistance
  • Fastening material for wash basin installation (fastening bolts M 12 x 110 mm, protection hose, nuts, flat washers, cover caps)
  • Fastening material for installation feet

Delivery data

  • Weight: 10,74 kg/Piece
  • Packing unit: 1

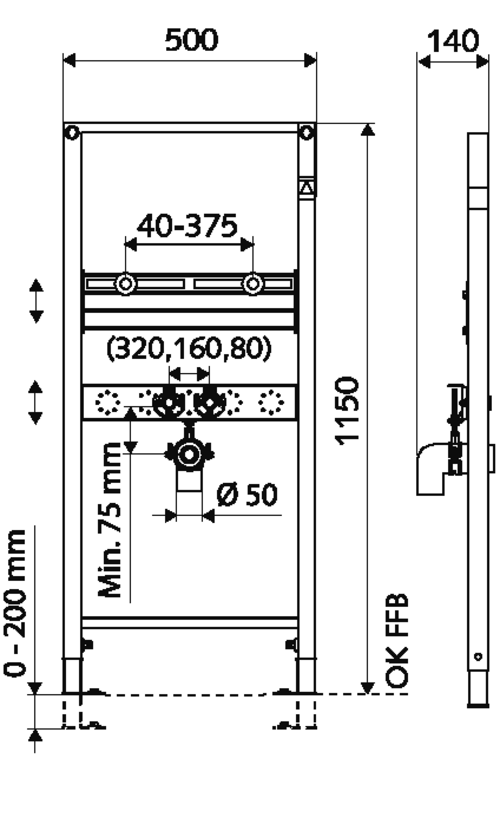

Technical data

  • Material: Frame Steel
  • Surface: Frame Powder coat finish
  • Dimensions: w 50 cm x h 115 cm
  • Waste water connection: Ø 50 mm
  • Water connection: 2x DN 15 G 1/2 AG (bottom)
  • Waste water outlet: Ø 50 mm/40 mm (by cutting to length)
  • Water outlet: 2x DN 15 G 1/2 IG
Necessary associated articles
For exposed installation
MONTUS wall bracket set (120 - 170 mm)
Article no: 03 071 00 99
or
MONTUS wall bracket set (150 - 210 mm)
Article no: 03 077 00 99
Downloads

Installation instructions

Waschtisch-Modul MONTUS
