Article number: 01 867 00 99

Concealed Masterbox WBD-SC-M

Mixed water
For LINUS/LINUS Basic D-SC-M concealed shower fittings. Manual actuation with automatic closing. With sealed housing bushings and internal isolating valve.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Masterbox
    • Roughing-in housing
    • Concealed shower tap with 2 isolating valves
    • Self-closing cartridge SC II with hot water restrictor
    • 2 pre-filters
    • 2 backflow preventers (EN 1717: EB-type)
  • Flushing nozzle
  • Flush-mounted cap

Delivery data

  • Weight: 1,91 kg/Piece
  • Packing unit: 1

Technical data

  • Running time: 5 - 30 s
  • Flow at 3 bar: 10 l/min
  • Flow pressure: 1.0 - 5.0 bar
  • Max. Resting pressure: 8 bar
  • Max. operating temperature: 70 °C (80 °C for thermal disinfection)
  • Material: Housing Plastic; Waterpath Dezincification-resistant brass, conform to German drinking water regulations
  • Dimensions: w 138 mm x h 149 mm x d 120 mm
  • Installation depth: 80 - 104 mm
  • Connection: 2x G 1/2 IG
  • Outlet: G 1/2 IG
  • Certificates: P-IX 19960/IB, DIN-DVGW, Belgaqua
  • Noise class: I
  • Flow class: B
Necessary associated articles
Concealed shower LINUS D-SC-M
Article no: 01 832 06 99
or
Concealed shower LINUS D-SC-M
Article no: 01 832 28 99
For building sealing according to DIN 18534
Expansion sleeve
Article no: 00 919 00 99
Recommended associated articles
Shower module MONTUS
Article no: 03 091 00 99
Downloads

Installation instructions

Masterbox WB-SC-M, WB-SC-V

Installation instructions

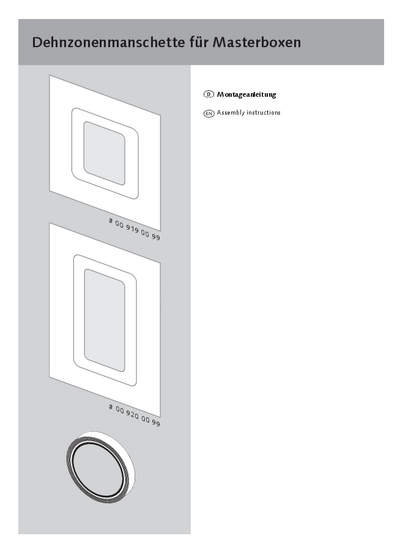

Dehnzonenmanschette
