Article number: 01 285 00 99

Urinal control RETROFIT LC

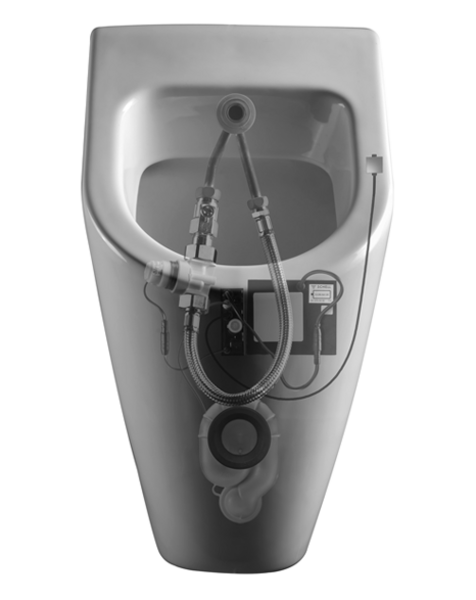

Battery operation. Vandal-resistant flush control with corrosion-safe siphon with LC sensor. For installation behind sanitary ceramics. Suitable for retrofitting existing systems with the following urinal ceramics: KERAMAG - Aller, Public Line, Renova VILLEROY & BOCH - Magnum, Subway, Arriba.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • E-module
  • Waterpath with 6 V solenoid valve
  • 6 V battery compartment, protection class IP65
  • Isolating valve
  • Special supply set with flush pipe connector
  • Flexible hose
  • Fastening material
  • Urinal siphon with LC sensor

Delivery data

  • Weight: 1,07 kg/Piece
  • Packing unit: 1

Technical data

  • Functions
    • Stagnation flush (every 24 hours after last flush)
    • Automatic stadium program (reduced flush volume with high usage frequency >2 users/5 min)
    • Acoustic signal (when battery charge is low)
    • Odour trap flush (when water level is low)
    • Automatic flush stop (in case of blocked drain pipe)
  • Setting options via Reedkontakt (accessories)
    • Flush programs (1 l, 2 l, hybrid flush)
    • Interval flush 5x (each flush 2 min contact time)
    • Cleaning flush 10 s
    • Cleaning stop 180 s
    • Diagnostics program
  • Material: Waterpath Plastic
Recommended associated articles
COMPACT LC reed contact
Article no: 01 529 00 99
Hint
  • The use in other urinal ceramics is possible after prior consultation with our technical department.
Mounting instructions
  • E-module and battery compartment installation with pressure closure on the tile.
Downloads

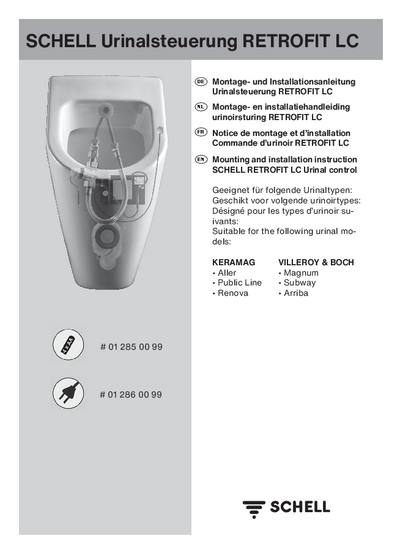

Installation instructions

RETROFIT LC

Brochure

Your calling card for public sanitary rooms.

Brochure

WC and urinal flush systems.

Brochure

Flush technology with system.
