Article number: 02 823 00 99

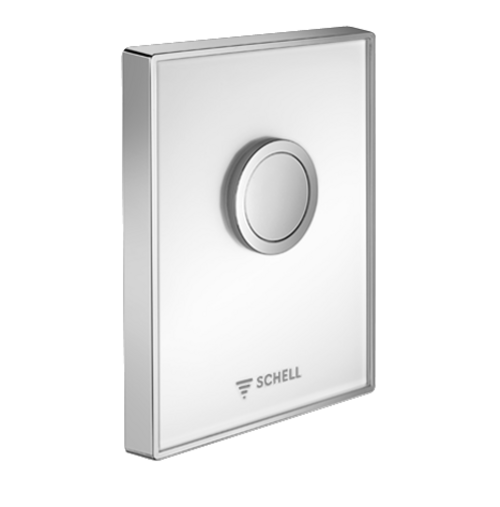

AMBITION urinal operating panel

Discontinued
For SCHELL COMPACT II concealed urinal flush valve.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Designer operating panel made from safety glass
    • Operating button made from brass
  • Self-closing cartridge with nozzle bore pre-filter
  • Installation frame

Delivery data

  • Weight: 0,73 kg/Piece
  • Packing unit: 1

Technical data

  • Flush volume adjustable: 1.0 - 6.0 l
  • Material: Actuation Brass; Front panel Safety glass (ESD); Frame Plastic
  • Surface: Actuation Chrome; Front panel White; Frame Chrome

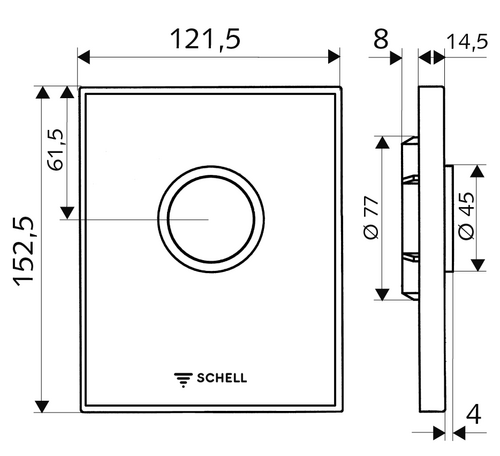

  • Dimensions front plate: w 121.5 mm x h 152.5 mm x d 14.5 mm
Necessary associated articles
Urinal module MONTUS
Article no: 03 075 00 99
or
Concealed urinal flush valve COMPACT II
Article no: 01 193 00 99
Hint
  • Discontinued article, as long as stocks last
