Article number: 00 211 06 99

Exposed wash basin tap VITUS VW-C-T

SSC SWS

Mixed water, ThermoProtect thermostat

Triggering via CVD-Touch electronics with automatic closing. Battery operation. With integrated SWS BE-F VITUS wireless bus extender for networking with the SWS water management system.

Remember Compare Redirect Datasheet

Find contact person on site

Scope of delivery

Electronic self-closing exposed wash basin tap

ThermoProtect thermostat, conform to EN 1111, unlockable/lockable temperature lock at 38 °C, anti-scalding protection if cold water supply fails
CVD-Touch electronics, programmable, IP65 protection against low-pressure water jets
SWS BE-F VITUS wireless bus extender
Solenoid valve 6 V for carrying out thermal disinfection with SWS (in accordance with DVGW worksheet W 551)
6 V solenoid valve with pre-filter
2 backflow preventers (EN 1717: EB-type)
Pivoting outlet (lockable) with flow regulator
6 V battery compartment (integrated)

4x AA alkaline battery 1.5 V
2 S-connections and rosettes (depth-adjustable)

Delivery data

Weight: 5,15 kg/Piece
Packing unit: 1

Technical data

Setting options via SWS SSC

Actuation force (soft/medium/hard)
Manual programming (off/on)
Max. flow time (1-950 s)
Stagnation flush (off/1-1000 s, every 1-250 h after last flush/every 1-250 h)
Actuation timeout (off/1-255 s, timeout 1-2000 min)

Setting options via manual programming

Max. flow time (4-120 s, 10 program stages)
Stagnation flush (off/20 s, every 24 h)

Flow: max. 5 l/min pressure independent
Flow pressure: 1.0 - 5.0 bar
Max. Resting pressure: 8 bar
Max. operating temperature: 70 °C (80 °C for thermal disinfection)
Material: Outlet Brass, conform to German drinking water regulations; Housing Brass, conform to German drinking water regulations
Surface: Chrome

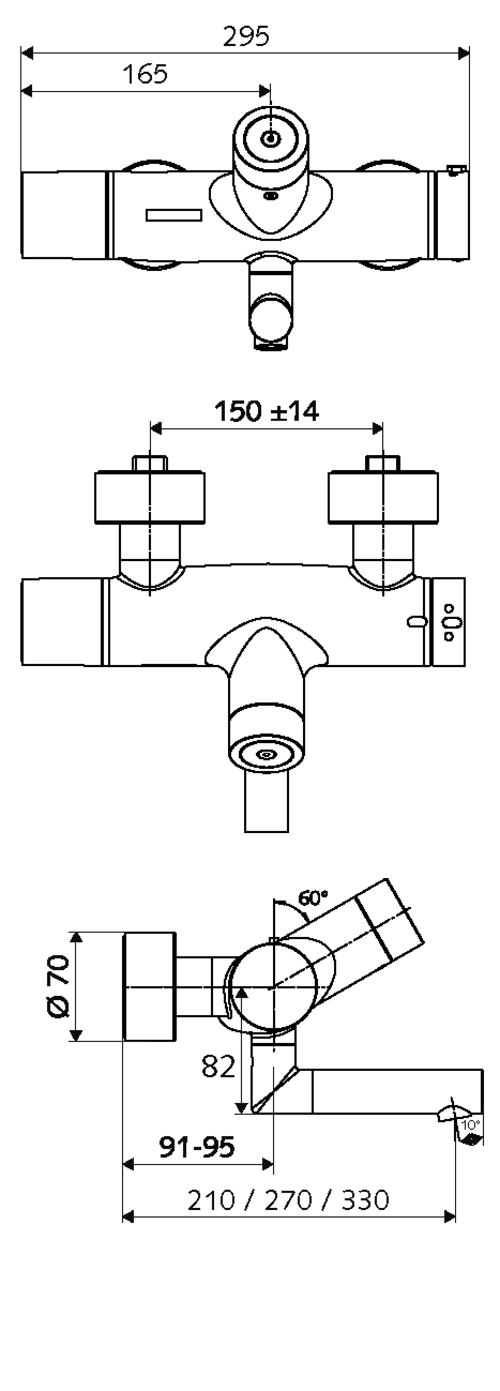

Projection to centre of aerator: 210 mm
Connection: 2x DN 15 G 1/2 AG
Certificates: PA-IX 28575/IO, Belgaqua
Noise class: I
Flow class: O
