Article number: 02 159 06 99

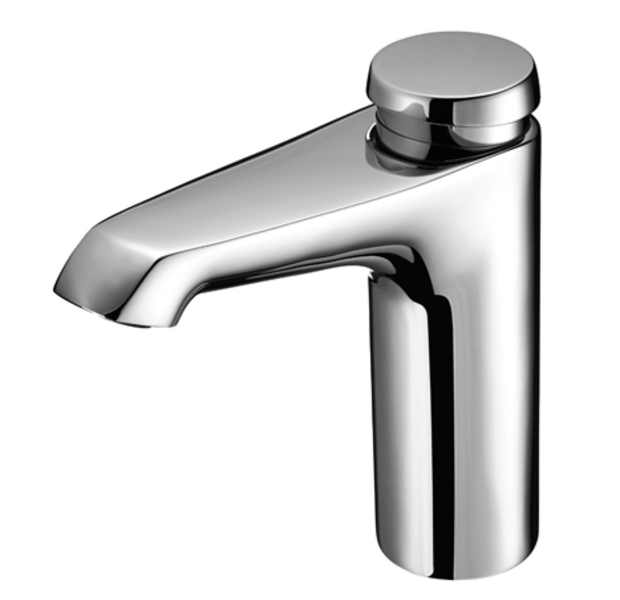

Self-closing wash basin taps XERIS SC

HD-K mid. - high-pressure cold water/pre-mixed water
Manual actuation with automatic closing. Easy flow time adjustment.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Self-closing single-hole tap
    • Self-closing cartridge SC II
    • Flow regulator
  • Flexible Clean-Fix S connection hose, G 3/8 IG x 380 mm, with pre-filter
  • Fastening material for wash basin installation

Delivery data

  • Weight: 2,00 kg/Piece
  • Packing unit: 1

Technical data

  • Running time: 2 - 15 s (7 s )
  • Flow: max. 5 l/min pressure independent
  • Flow pressure: 1.0 - 5.0 bar
  • Max. Resting pressure: 8 bar
  • Max. operating temperature: 70 °C (80 °C for thermal disinfection)
  • Material: Housing Brass, conform to German drinking water regulations
  • Surface: Chrome
  • Connection: G 3/8 IG
  • Certificates: PA-IX 29071/IO
  • Noise class: I
  • Flow class: O
Recommended associated articles
Angle valve with regulating function COMFORT with filter
Article no: 05 430 06 99
Wash basin outlet valve OPEN
Article no: 02 002 06 99
or
Wash basin outlet valve PUSH OPEN
Article no: 02 000 06 99
Downloads

Installation instructions

Mounting and service instruction

Brochure

Washbasin taps.
Product videos
Wash basin taps XERIS
XERIS - Eine Armaturenfamilie zeigt Persönlichkeit
XERIS Series
