Article number: 01 137 00 99

Concealed WC flush valves COMPACT II ND

Low-noise concealed low-pressure flush valve. For combination with all SCHELL ND WC controls/operating panels. Conform to DIN EN 12541. Internal isolating valve.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

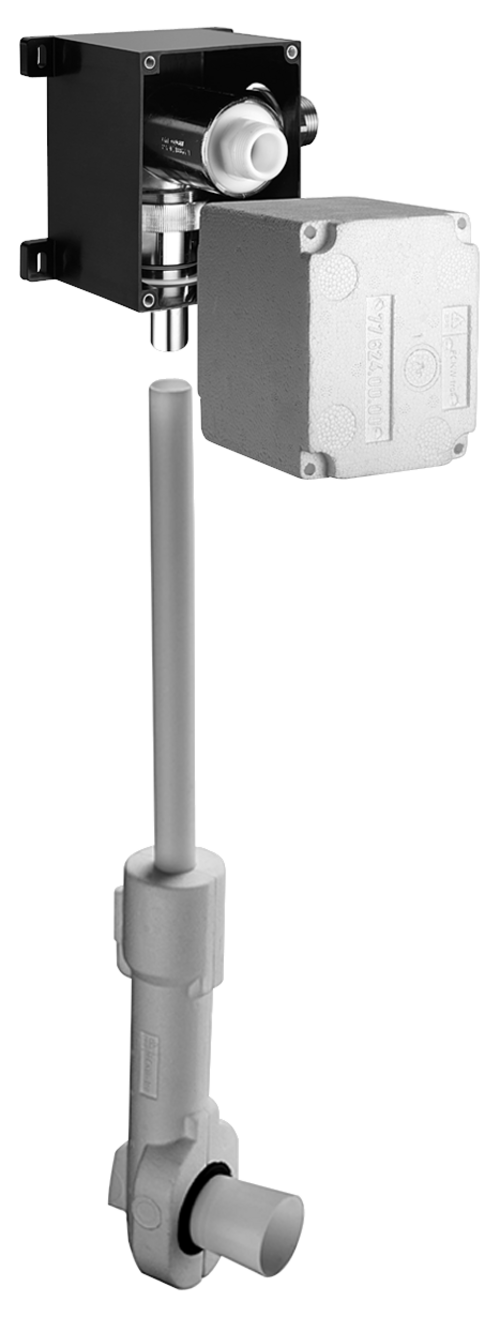

Scope of delivery

  • Masterbox
    • Roughing-in housing
    • Concealed flush valve COMPACT II ND, with isolating valve and flush plug
    • Pipe interrupter (DIN EN 12541)
  • Flush-mounted cap
  • Height-adjustable flush pipe with construction plug

Delivery data

  • Weight: 1,67 kg/Piece
  • Packing unit: 1

Technical data

  • Flow pressure: 0.8 - 2.5 bar
  • Flush flow: 1.4 l/s
  • Material: Housing Plastic; Waterpath Dezincification-resistant brass, conform to German drinking water regulations
  • Connection: DN 25 G 1 AG (right)
  • Outlet: Flush pipe Ø 45 mm
  • Certificates: dr, Watermark, WELS
Necessary associated articles
WC operating panel EDITION ND
Article no: 02 815 06 99
or
WC operating panel EDITION ND
Article no: 02 815 15 99
or
WC operating panel EDITION ND
Article no: 02 815 28 99
or
WC operating panel EDITION Eco ND
Article no: 02 814 06 99
or
WC operating panel EDITION Eco ND
Article no: 02 814 15 99
or
WC operating panel EDITION Eco ND
Article no: 02 814 28 99
or
WC operating panel EDITION Eco ND 100
Article no: 02 824 06 99
Downloads

Installation instructions

WC concealed flush valve COMPACT II

Brochure

Your calling card for public sanitary rooms.

Brochure

WC and urinal flush systems.

Brochure

Flush technology with system.
