Article number: 00 292 06 99

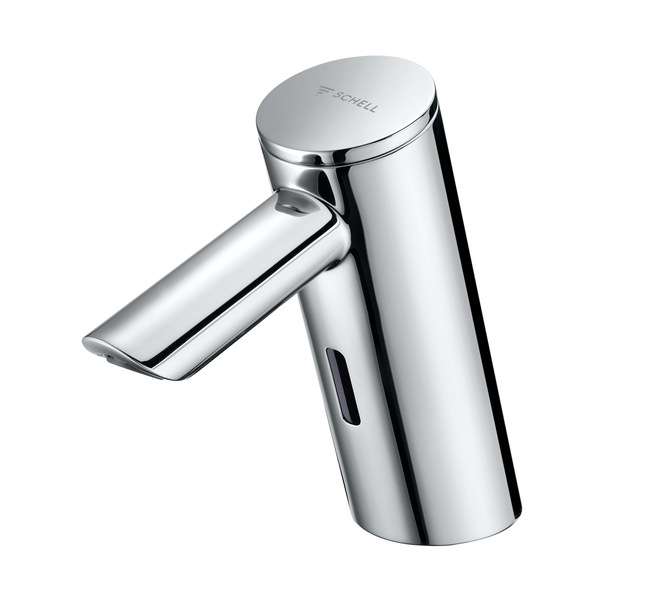

Electronic wash basin tap PURIS E²

SWS

HD-K - high-pressure cold water/pre-mixed water

Contactless, sensor-controlled tap with innovative ToF technology. Insensitive against reflective materials such as mirrors, saftety vests, etc. With integrated Bluetooth® interface. Configurable via SCHELL app. Suitable for networking with the SCHELL SWS water management system. Excluding power supply. Intended for power supply via SCHELL water management system SWS or central power supply unit. With extended outlet 134 mm.

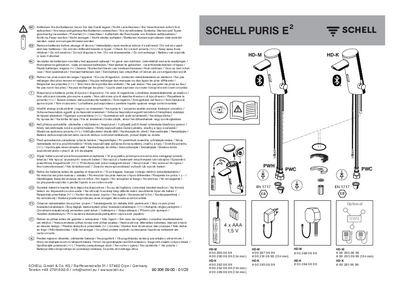

Remember Compare Redirect Datasheet

Find contact person on site

Scope of delivery

Time-of-flight sensor single-hole tap

Time-of-flight sensor electronics (ToF) with automatic adjustment of the sensor range
6 V axial solenoid valve with pre-filter
Recessed aerator (theft-protected)
Connection cable, 220 mm, with 3-pin plug connector, protection class IP65

Flexible Clean-Fix S connection hose, G 3/8 IG x 410 mm, with integrated backflow preventer (EN 1717: EB-type) and pre-filter
Fastening material for wash basin installation

Delivery data

Packing unit: 1

Technical data

Setting options via SCHELL App

Quick configuration via preset operating modes (save electricity / save water / comfort)
Individual settings in expert mode (sensor range, sensor measuring interval, person detection, max. runtime, run-on time)
Stagnation flush (off / at intervals / smart demand-based flush taking usage into account / at fixed times [day(s), time])
Continuous flush for thermal disinfection, triggering via app (3 - 10 min)
Continuous flow, triggering via app (15 - 600 s)
Cleaning stop, triggering via app or proximity reflex (off / 60 - 360 s)

Flow: max. 5 l/min pressure independent
Flow pressure: 1.0 - 5.0 bar
Max. Resting pressure: 8 bar
Max. operating temperature: 70 °C (80 °C for thermal disinfection)
Material: Housing Brass
Surface: Chrome
Connection: G 3/8 IG
Certificates: PA-IX 10332/IO, DVGW applied
Noise class: I
Flow class: O
